Brand: Cube

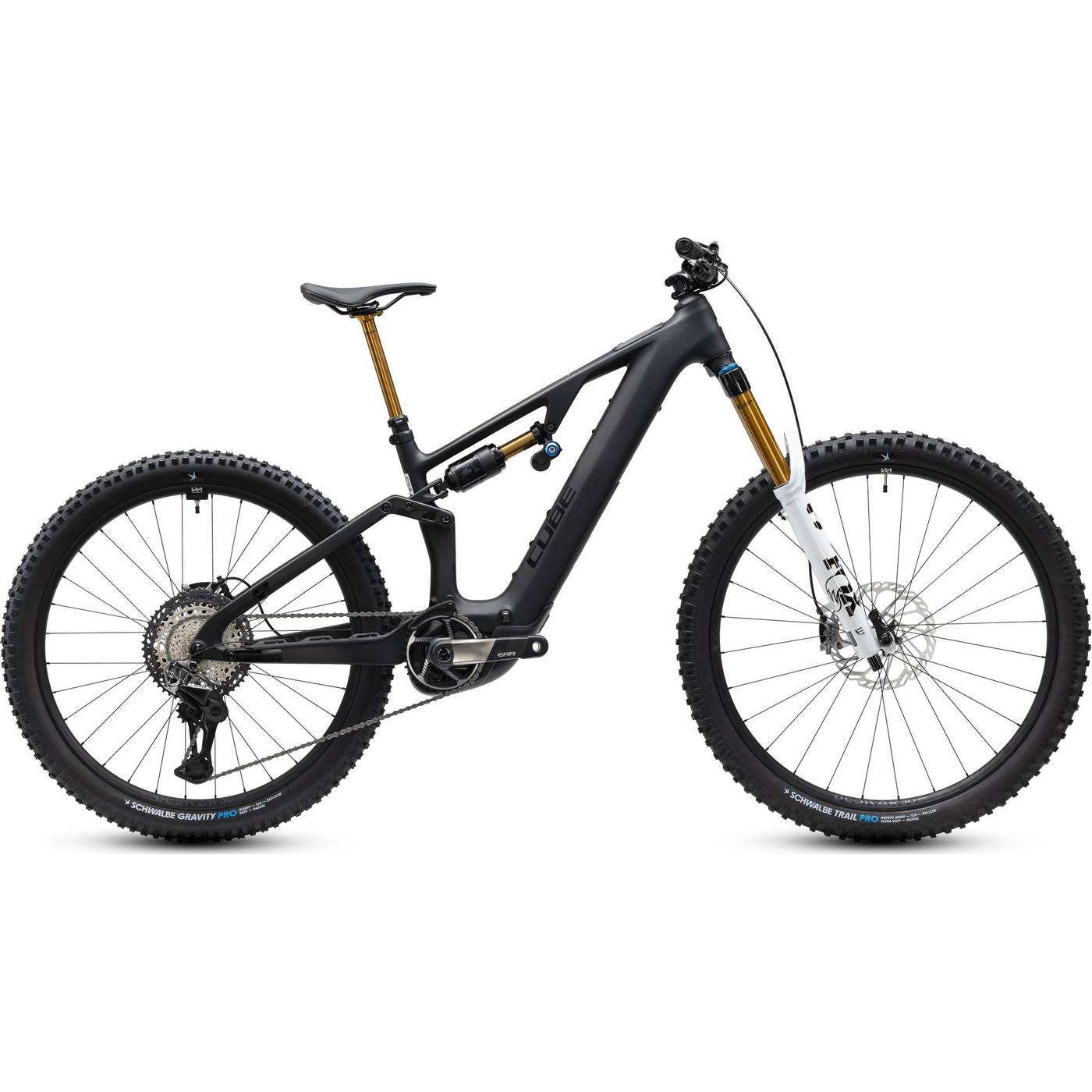

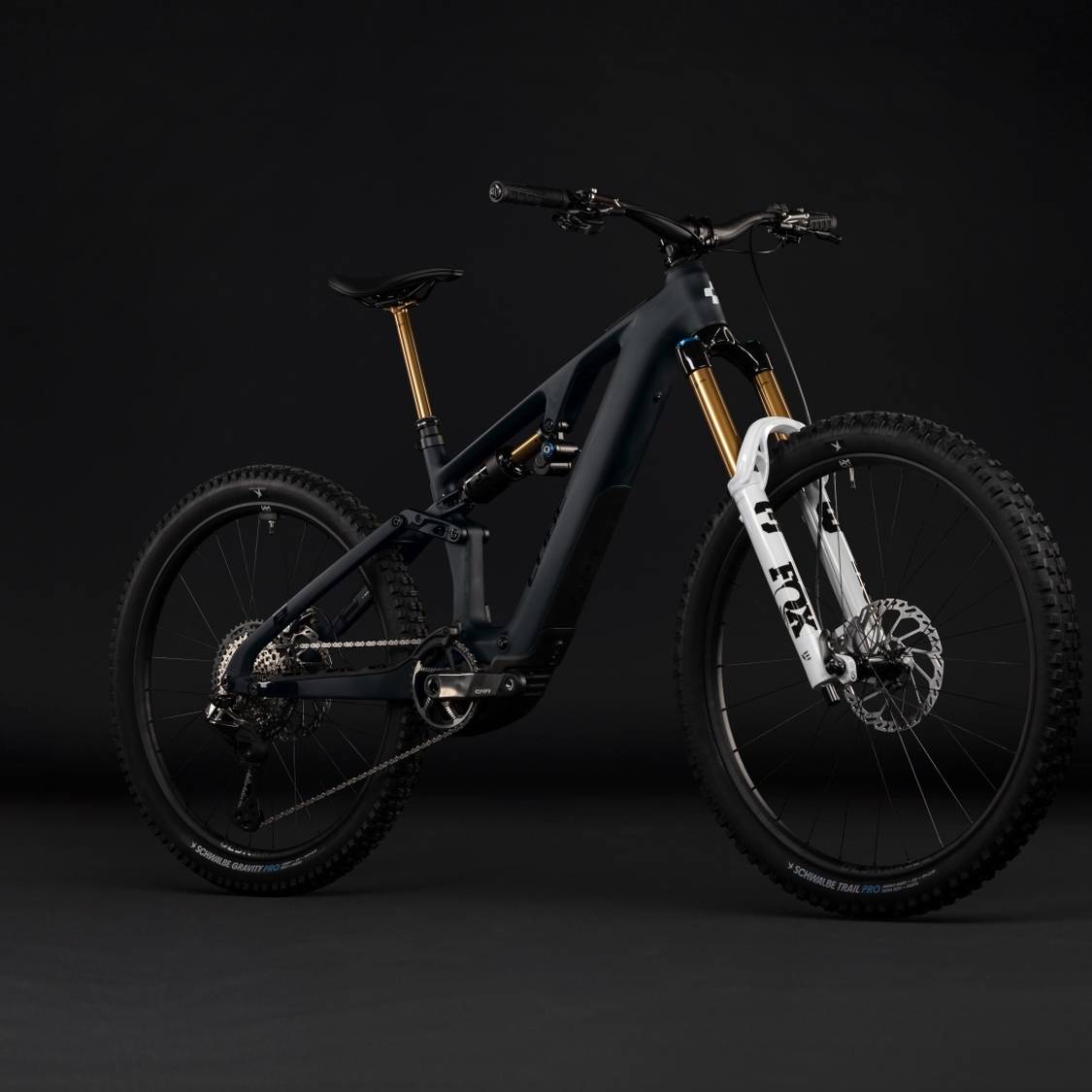

Cube AMS Hybrid 177 C:62 AT 600X Electric Full Suspension Mountain Bike

€7,799.00

Add to Basket

A bike fit for team riders needs components that'll last the course – literally. That's why, with the AMS Hybrid 177 C:62 AT, we started with Fox's smooth and versatile Fox 38 Factory Grip X2 fork and matching Float X2 Factory shock. Shimano's electronic XTR Di2 1x12 gears – with a Race Face Era carbon crank – transfer the combined power of your legs and the Bosch CX-R drive to the trail. There's a Kiox 400C controller to put you in charge of the Bosch drive and 600Wh battery, of course. A dropper post, naturally. And powerful Shimano XTR hydraulic disc brakes working with Schwalbe Magic Mary and Albert 2.5in tyres on Newmen Beskar 30 wheels to keep you on track and in control. The complete package, in other words, for big Alpine days out...

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and fitted with the powerful Bosch CX-R motor, it features a built-in 600Wh PowerTube battery for the ideal balance of weight and range. We've designed the geometry and kinematics to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, while an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

Specifications

Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
Color: carbon´n´white
Size: S
Sizes: S, M, L, XL

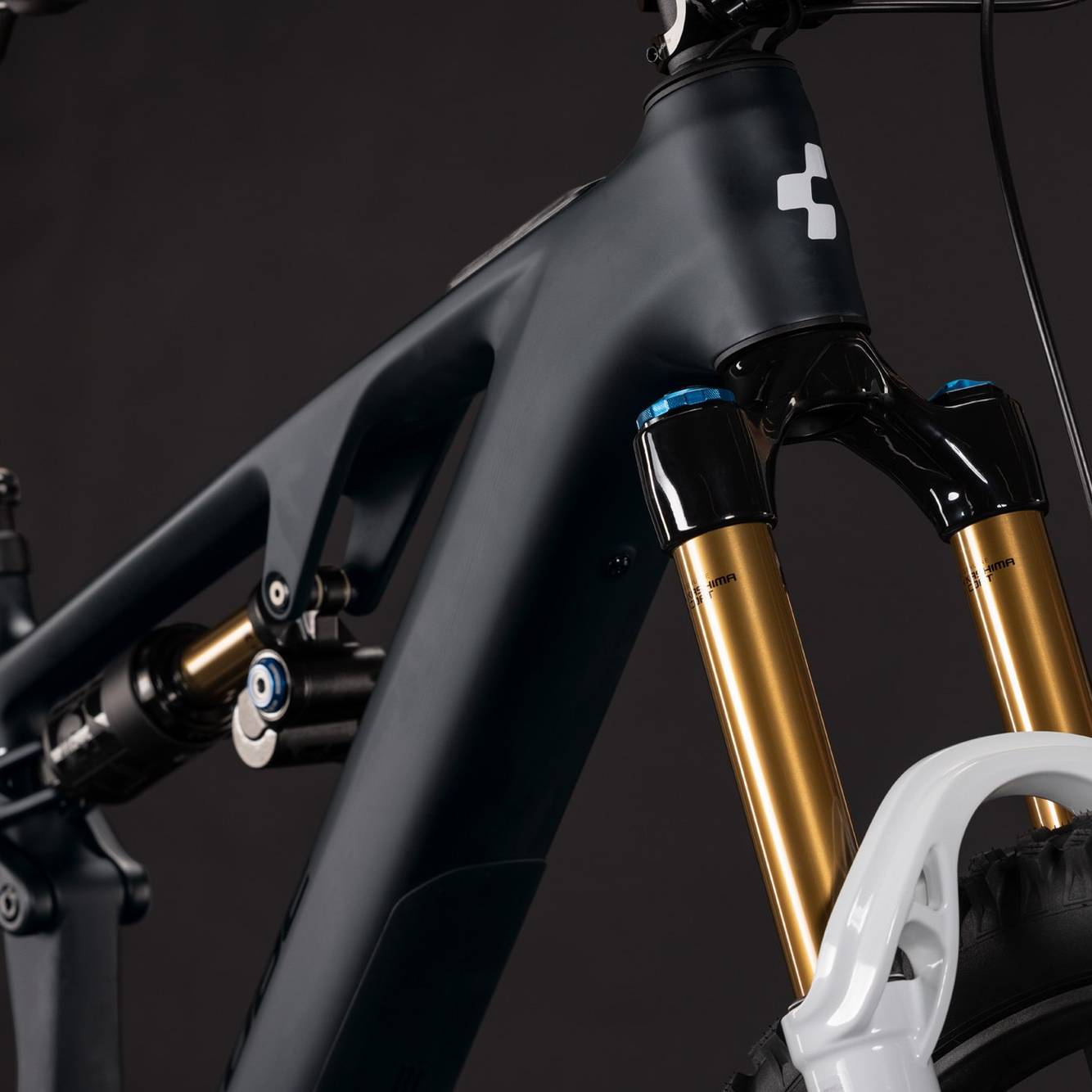

Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

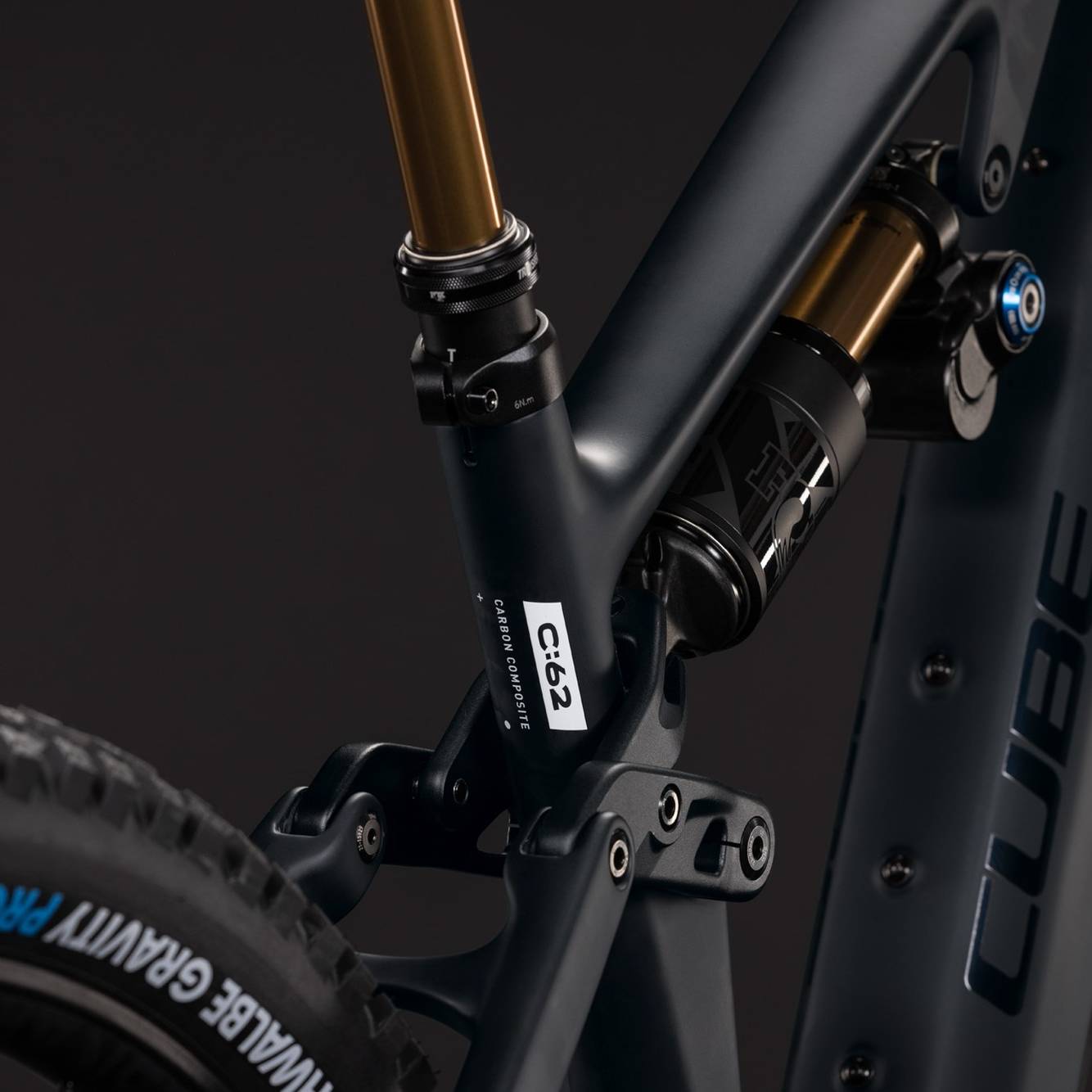

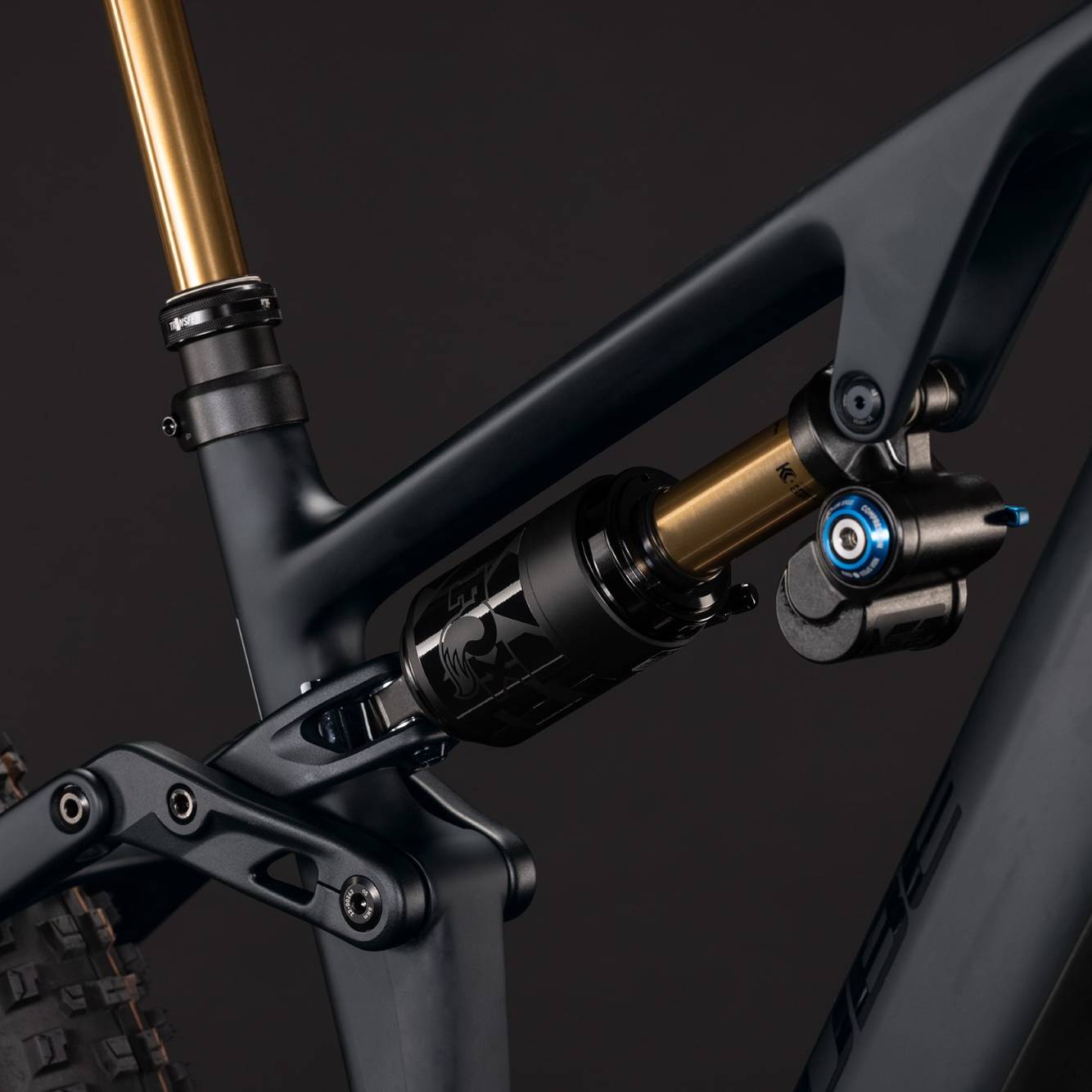

Frame shock: Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
Shock hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem: Race Face Turbine R 35
Handlebar: Race Face ERA 35
Grips: ACID Disrupt

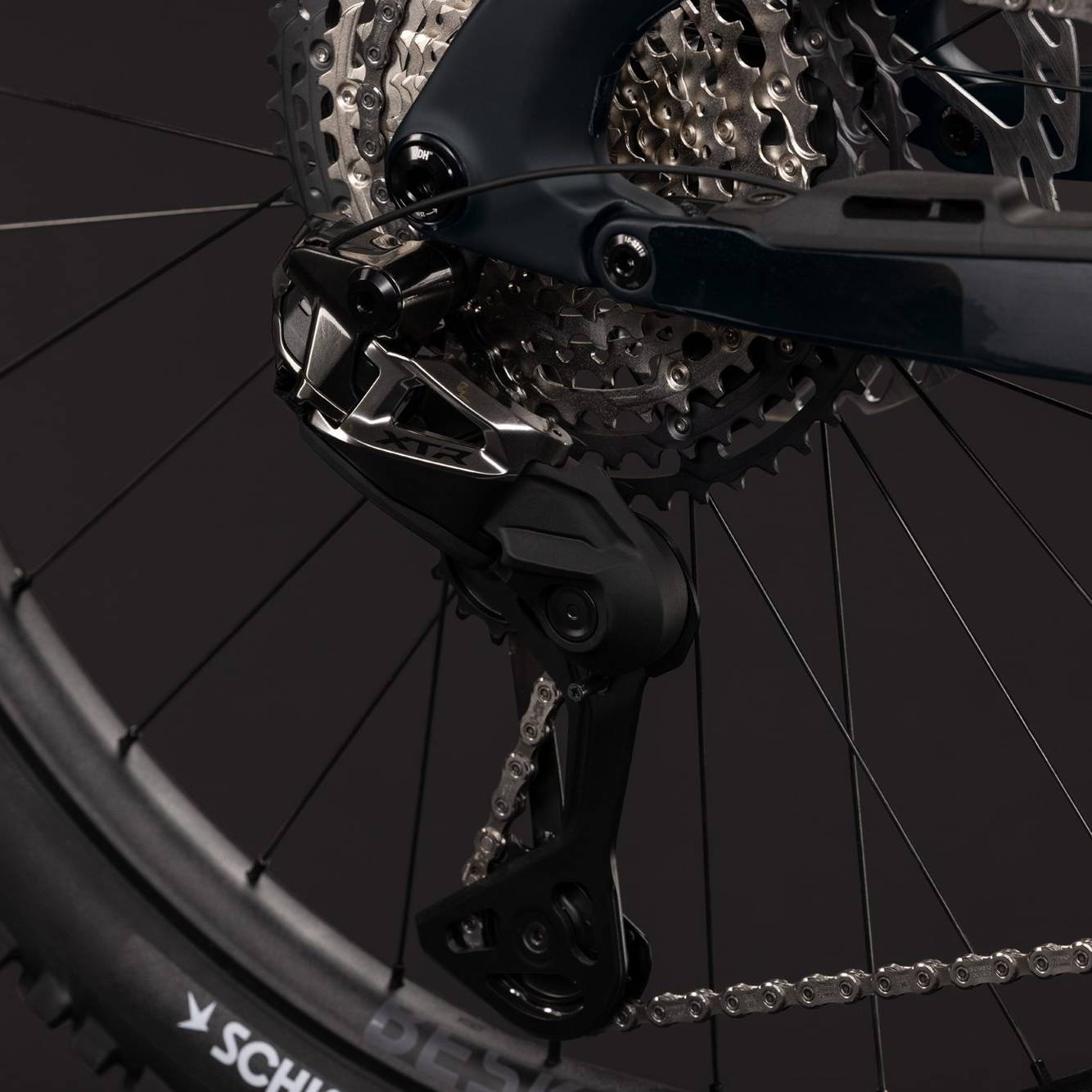

Rear Derailleur: Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano XTR Di2 SW-M9250-I, Direct Attach
Brakes: Shimano XTR BR-M9220, Hydr. Disc Brake (200/200)

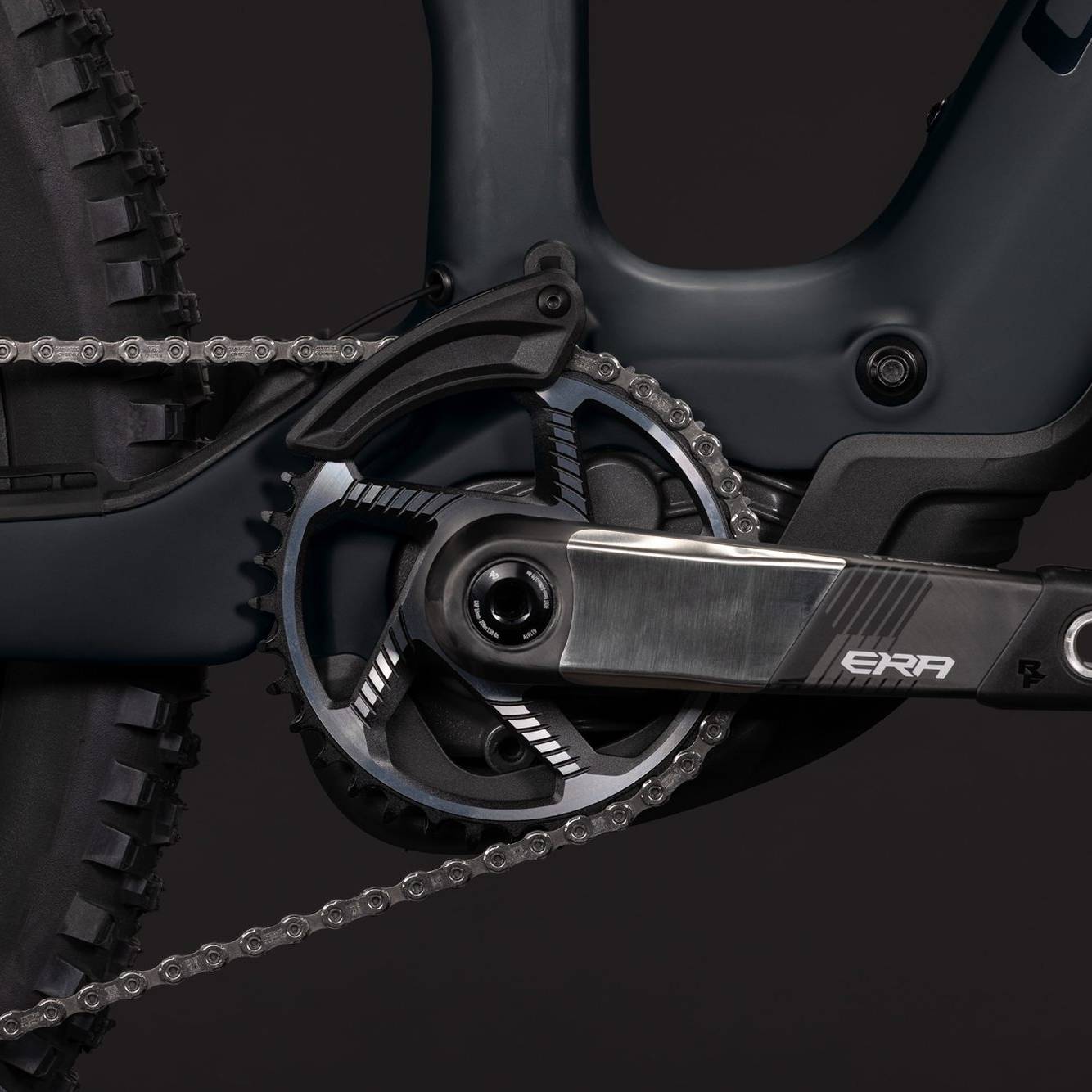

Crankset: Race Face ERA E-MTB, 36T
Cassette: Shimano XT CS-M8200, 10-51T
Chain: Shimano XT CN-M8100
Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires Front: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
Tires Rear: Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Pedals: ACID PP Rookie large
Saddle: ACID Venec EMTB Trail 140
Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
Motor: Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)
Battery: Bosch PowerTube 600
Charger: Bosch 4A
Remote: Bosch Mini Remote

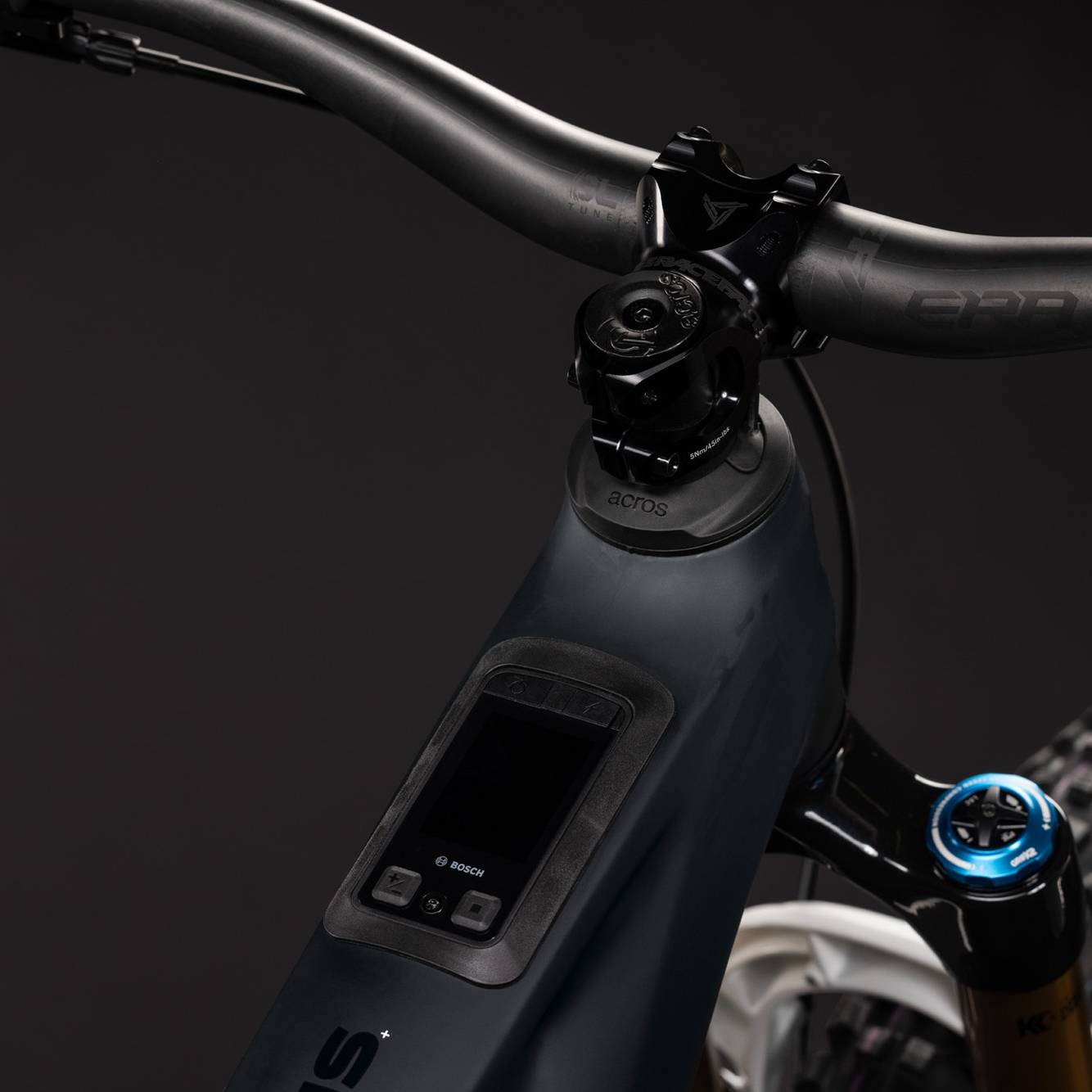

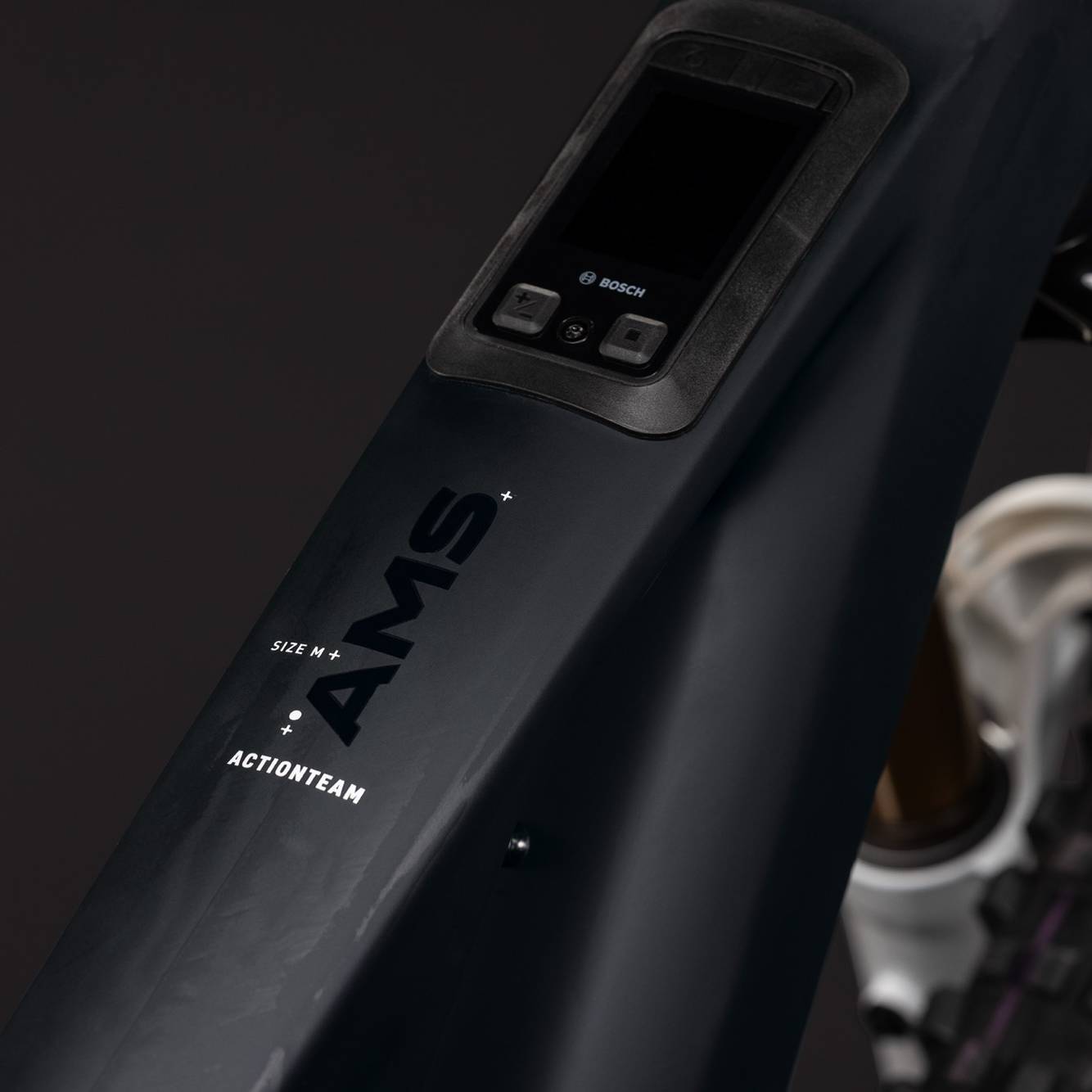

Display: Bosch Kiox 400C
Weight: 21,9 kg
System Weight max.: 135 kg
Driver max. Weight: 110 kg
