Brand: Cube

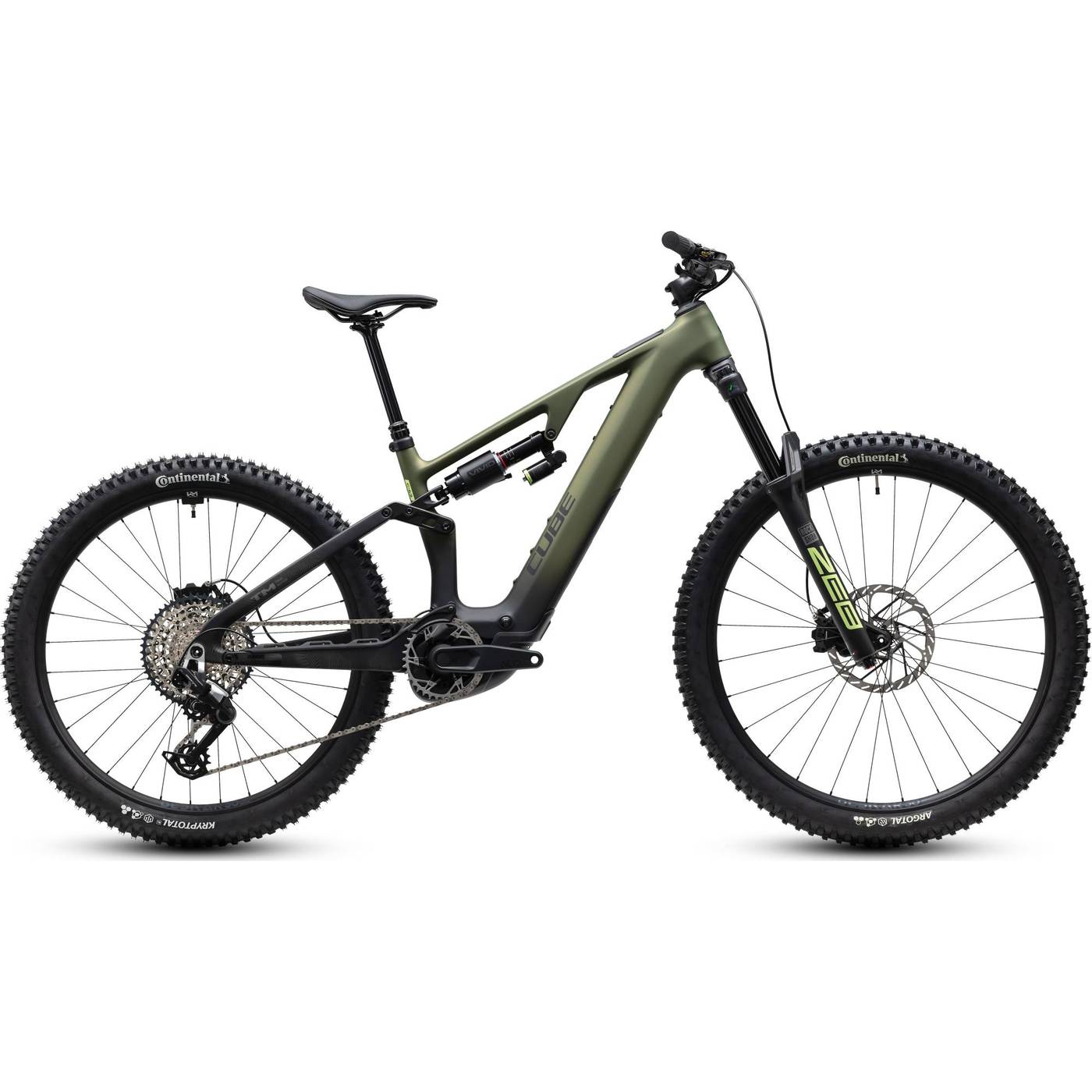

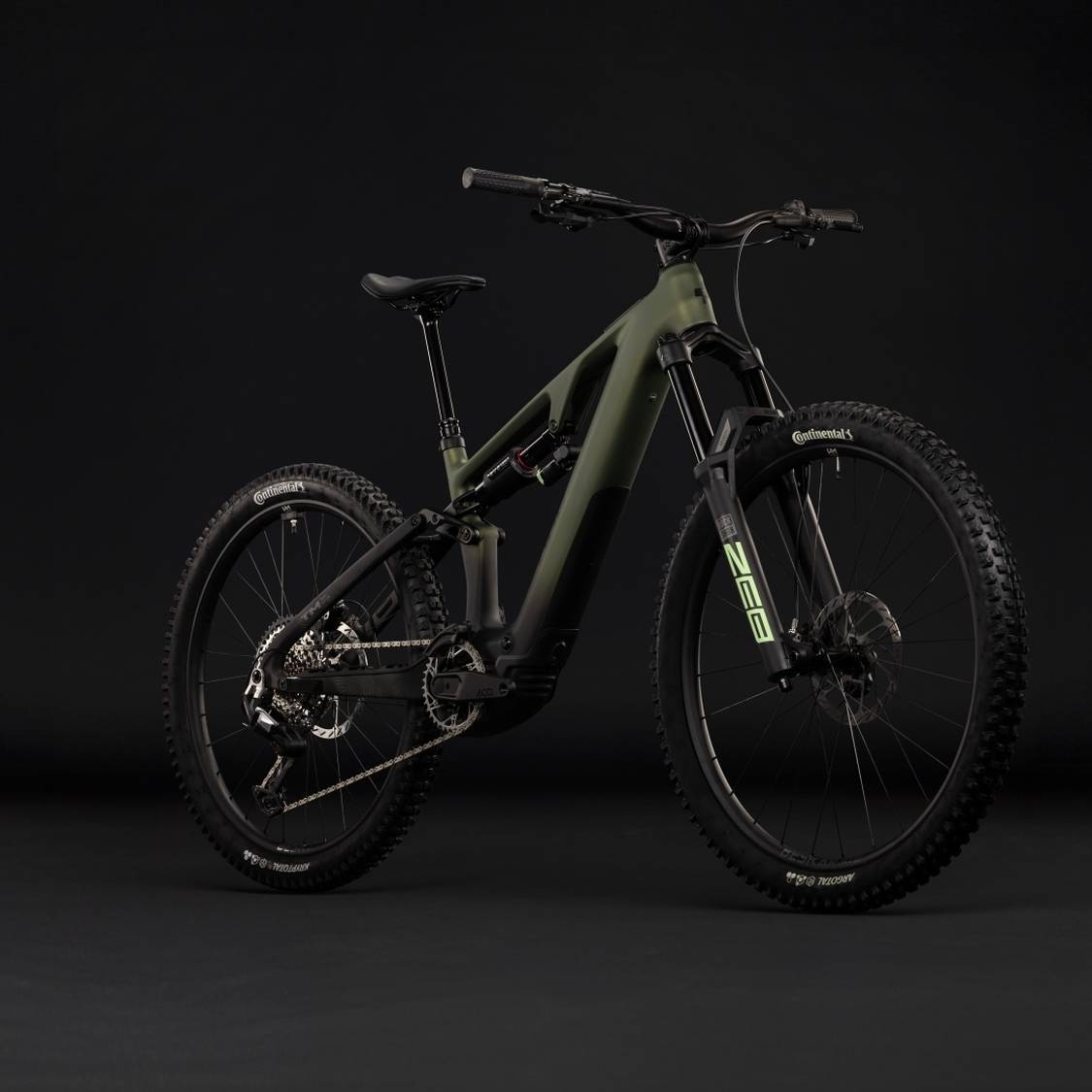

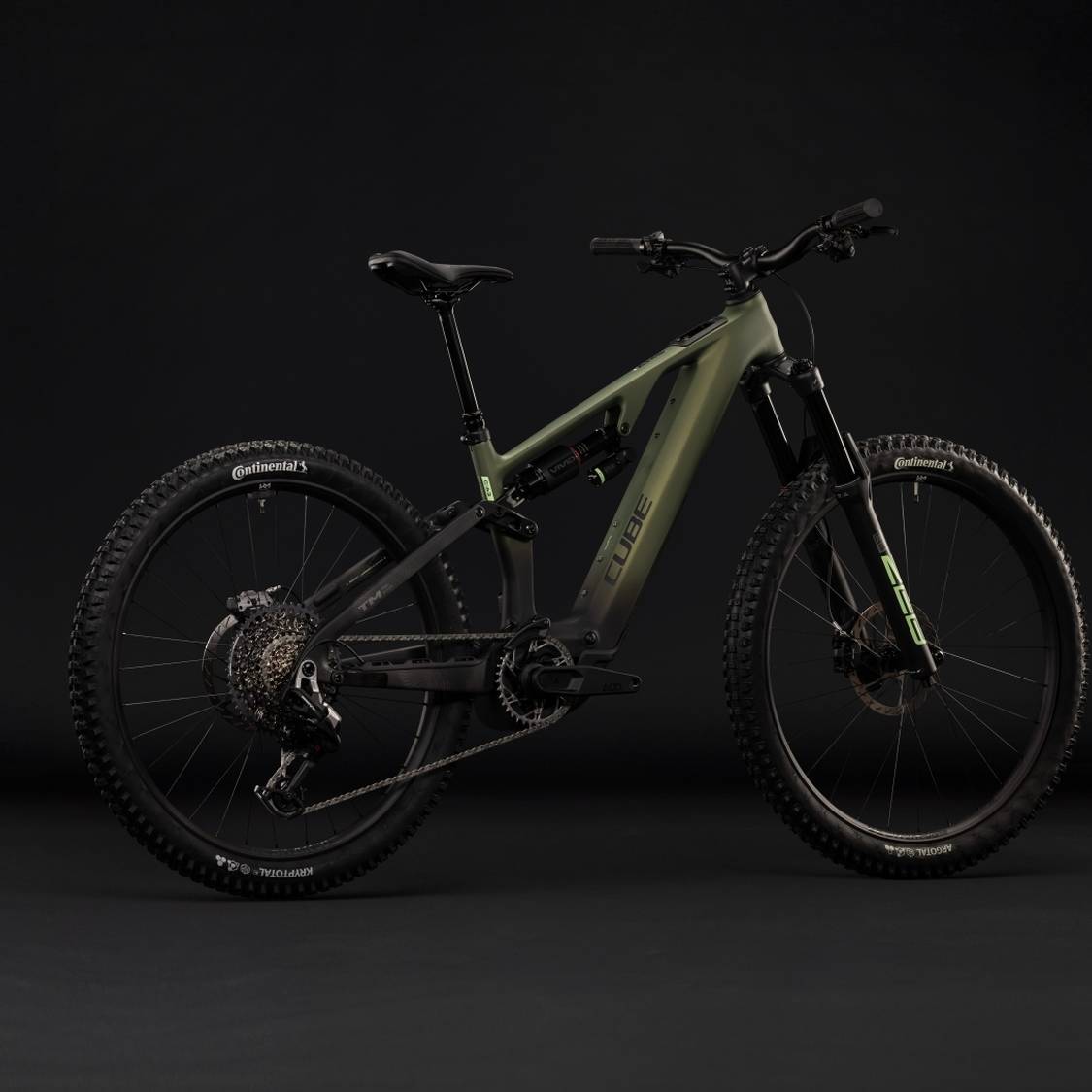

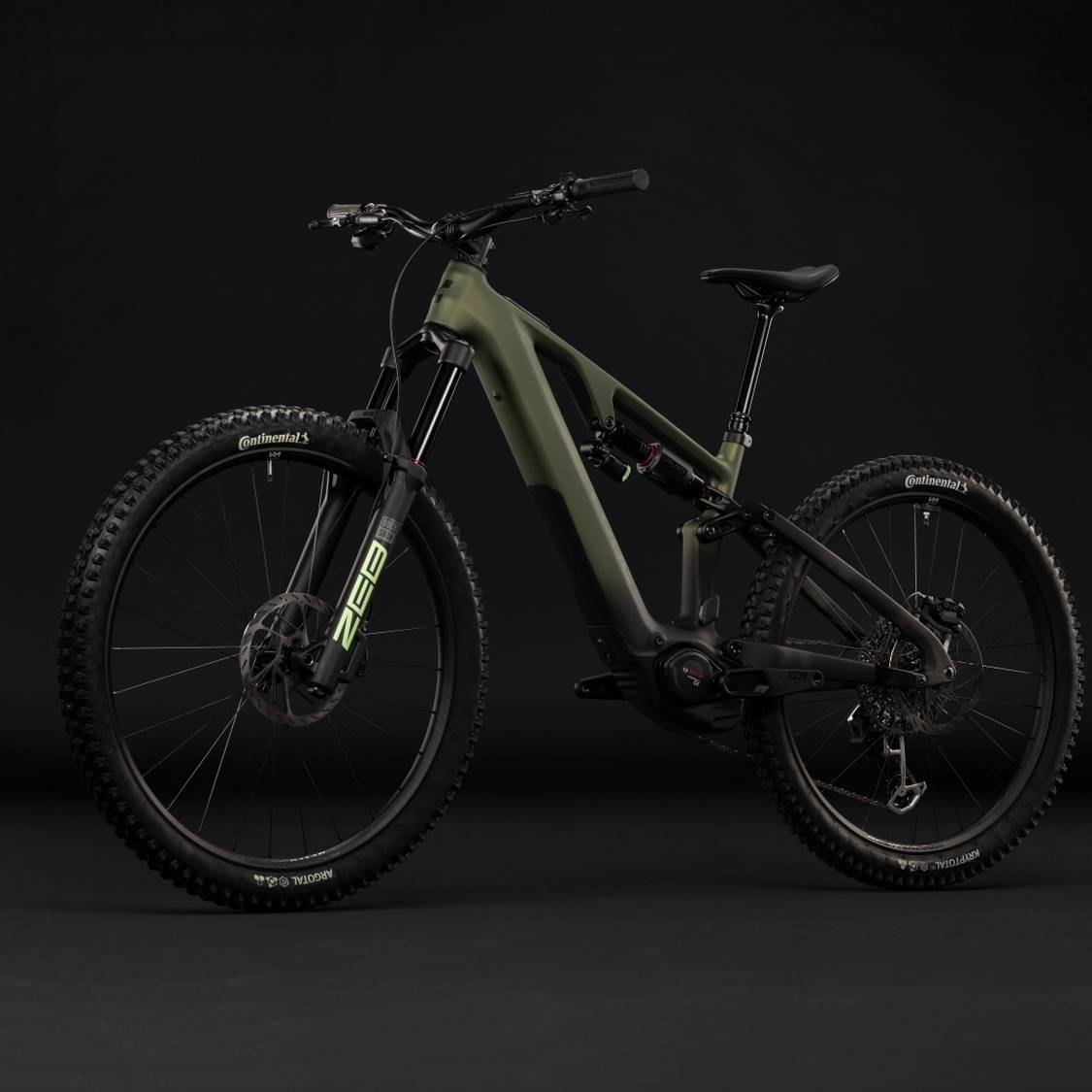

Cube AMS Hybrid 177 C:62 TM 600X Electric Full Suspension Mountain Bike

€6,099.00

Add to Basket

A bike built to take on the rowdiest mountain trails and come out on top needs components to match. So, for the AMS Hybrid 177 C:62 TM, we began by selecting RockShox's Zeb Select+ fork and matched it with a Vivid Select shock. Then we shod a pair of Newmen Beskar 30 wheels with Continental Argotal and Kryptotal 2.4in tyres, and added a set of Sram's powerful Maven Silver hydraulic disc brakes. There's a Kiox 400C controller to keep you on top of the Bosch CX drive and 600Wh battery's performance. And Sram's Eagle 90 Transmission 1x12 gears to get your power to the trail. It's ready. Are you?

We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and fitted with the Bosch CX motor, it features a built-in 600Wh PowerTube battery for the ideal balance of weight and range. We've designed the geometry and kinematics to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, while an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!

Specifications

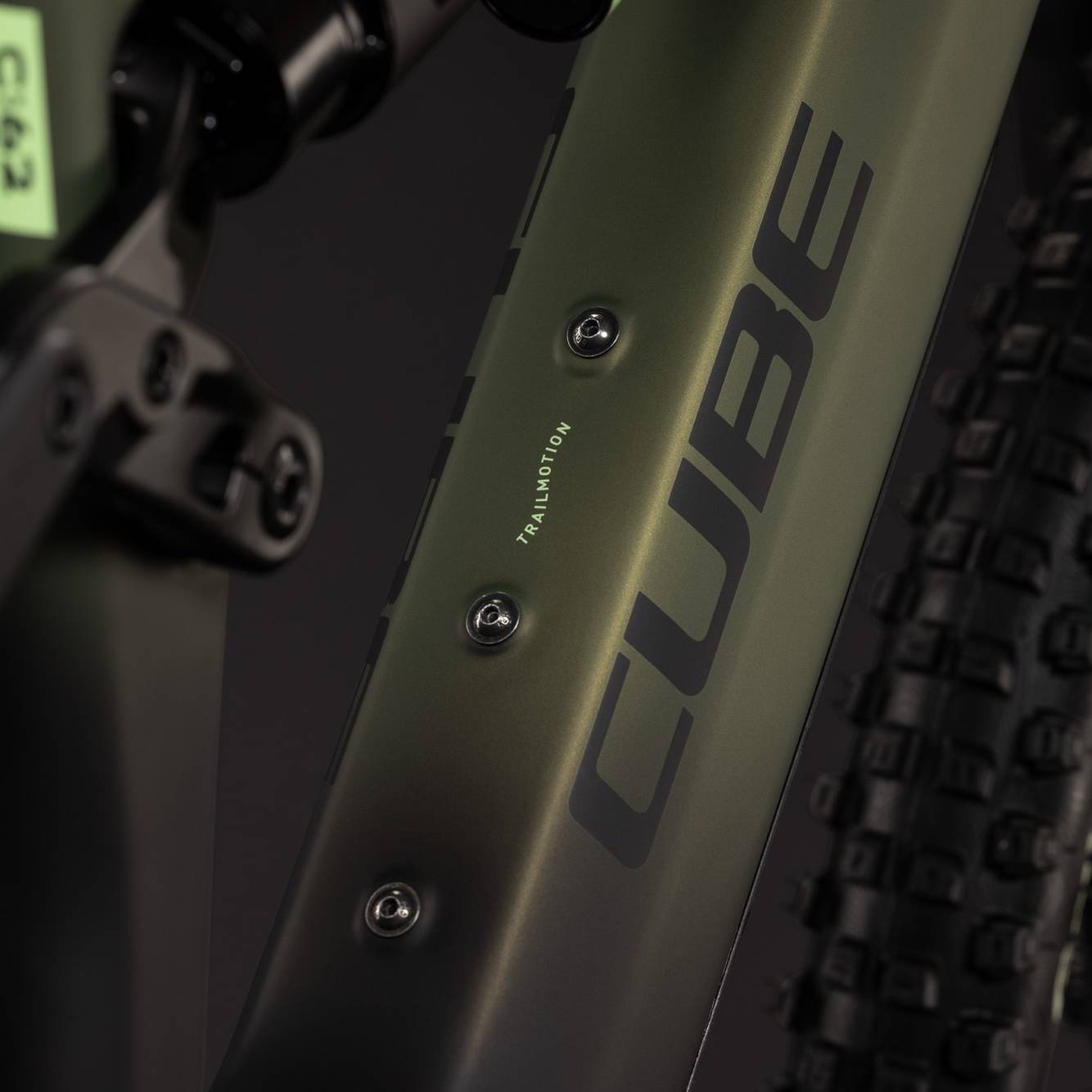

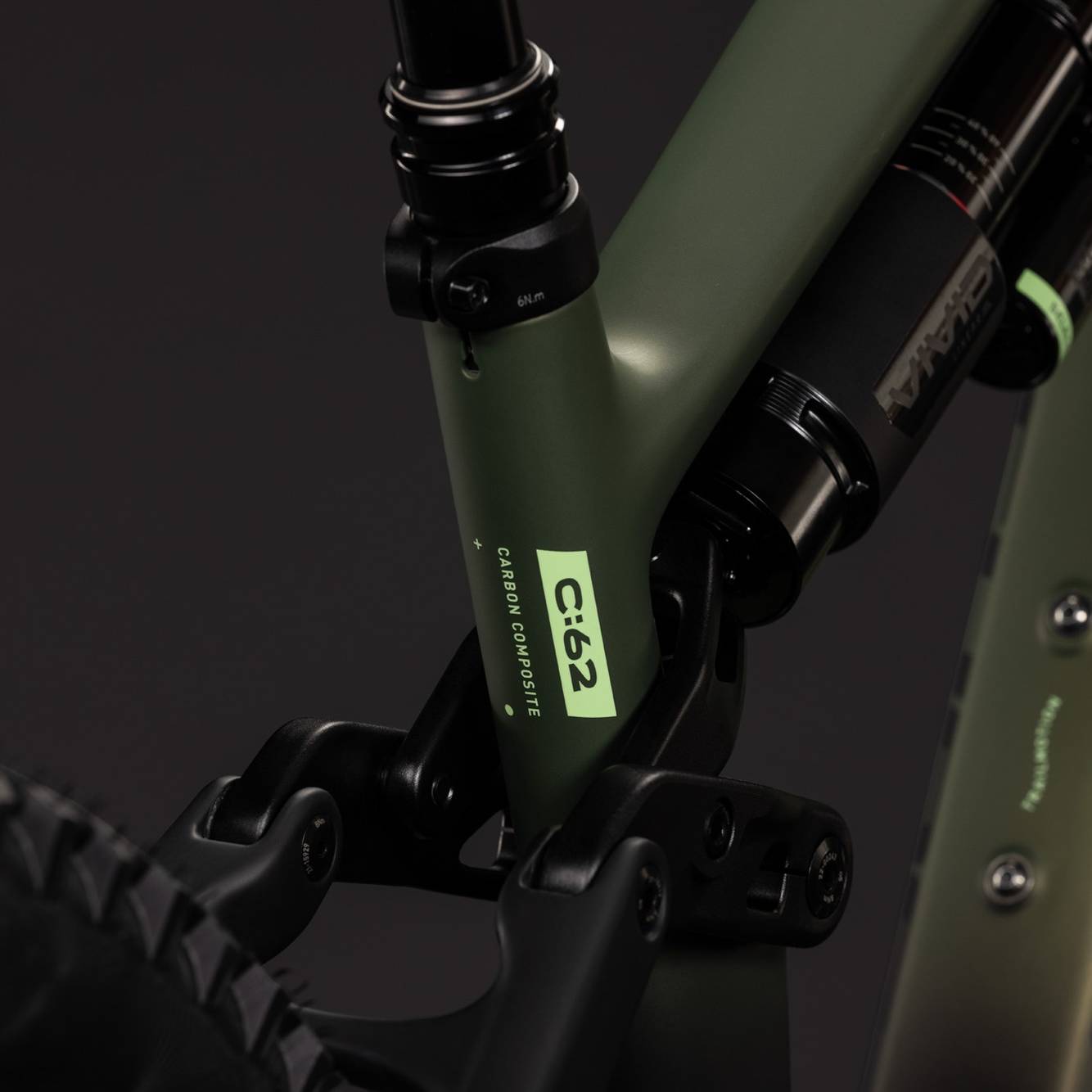

Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
Color: reedgreen´n´gills
Size: S
Sizes: S, M, L, XL

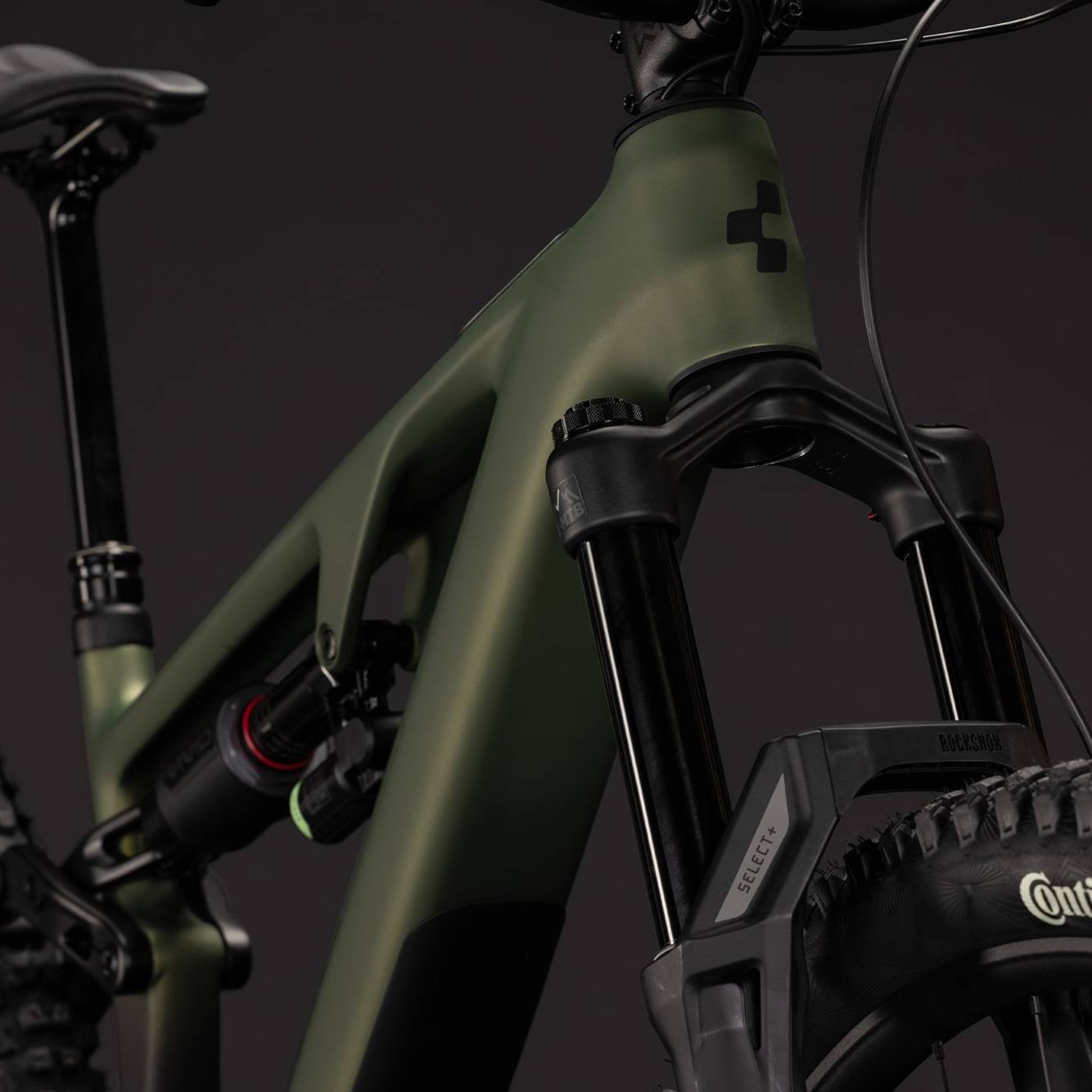

Fork: RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered, 15x110mm, 170mm
Frame shock: RockShox Vivid Select, 230x65, Rebound Adjust, 2-Position Lever
Shock hardware: Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem: Newmen Evolution SL 318.4, 31.8mm
Handlebar: Newmen Beskar 318.40 VariGrip System
Grips: Newmen Slat VGS
Rear Derailleur: Sram Eagle 90 Transmission, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Sram Eagle 90 Transmission, Single Click
Brakes: Sram Maven Silver, Hydr. Disc Brake (200/200)

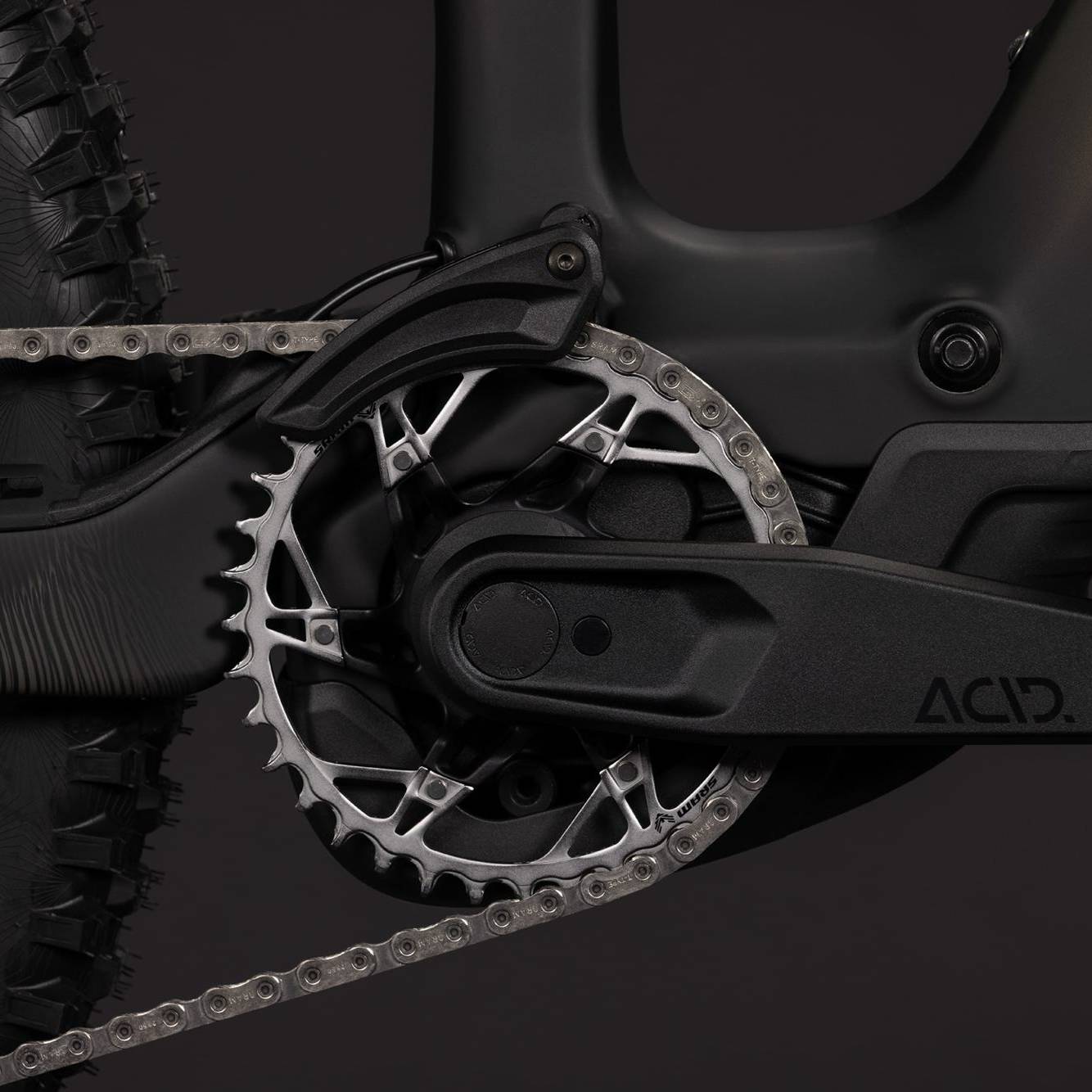

Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Sram XS-1275, 10-52T
Chain: Sram GX Eagle™ Transmission
Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires Front: Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4
Tires Rear: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Pedals: ACID PP Rookie large
Saddle: ACID Venec EMTB Trail 140
Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor: Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Battery: Bosch PowerTube 600
Charger: Bosch 4A
Remote: Bosch Mini Remote

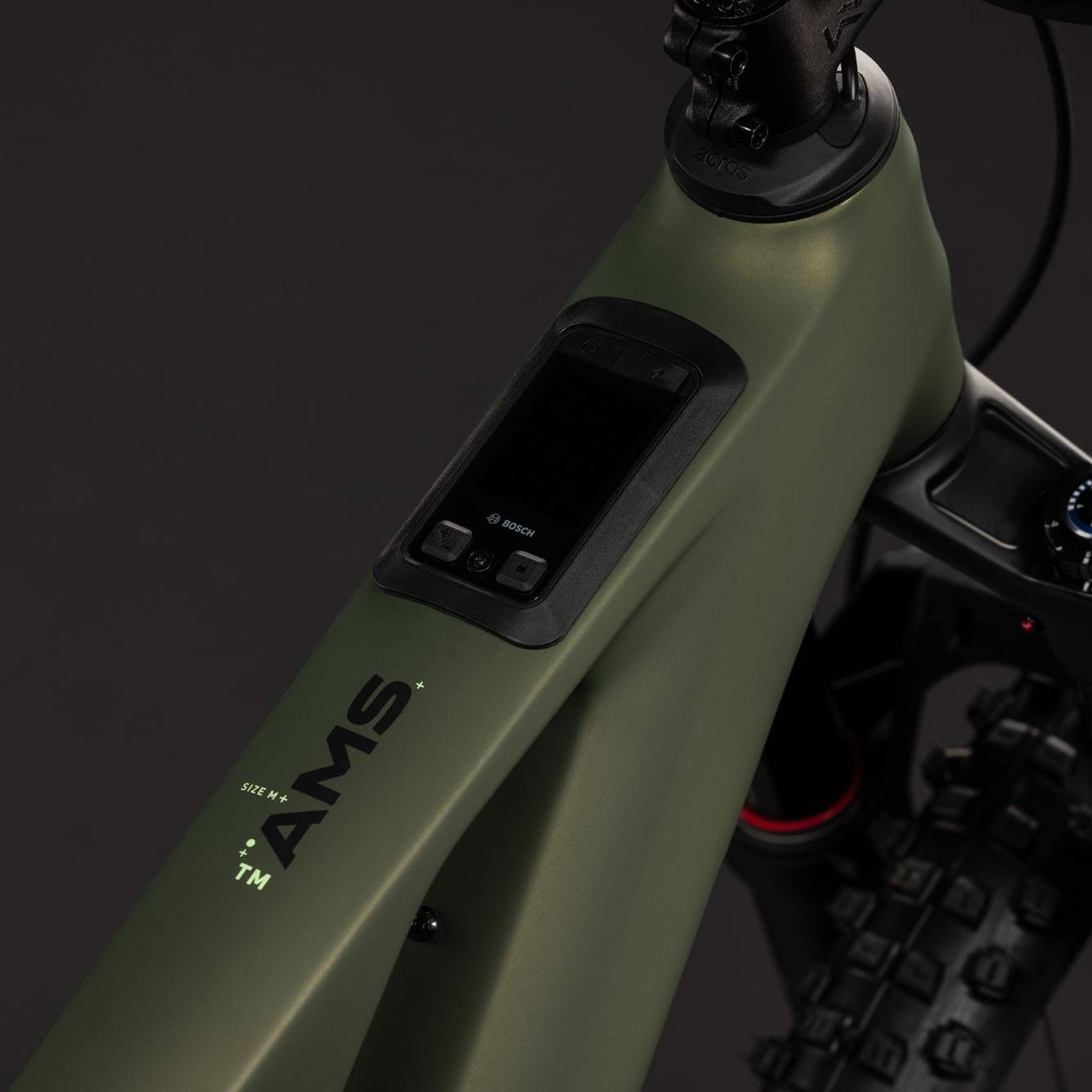

Display: Bosch Kiox 400C
Weight: 22,5 kg
System Weight max.: 135 kg
Driver max. Weight: 110 kg
