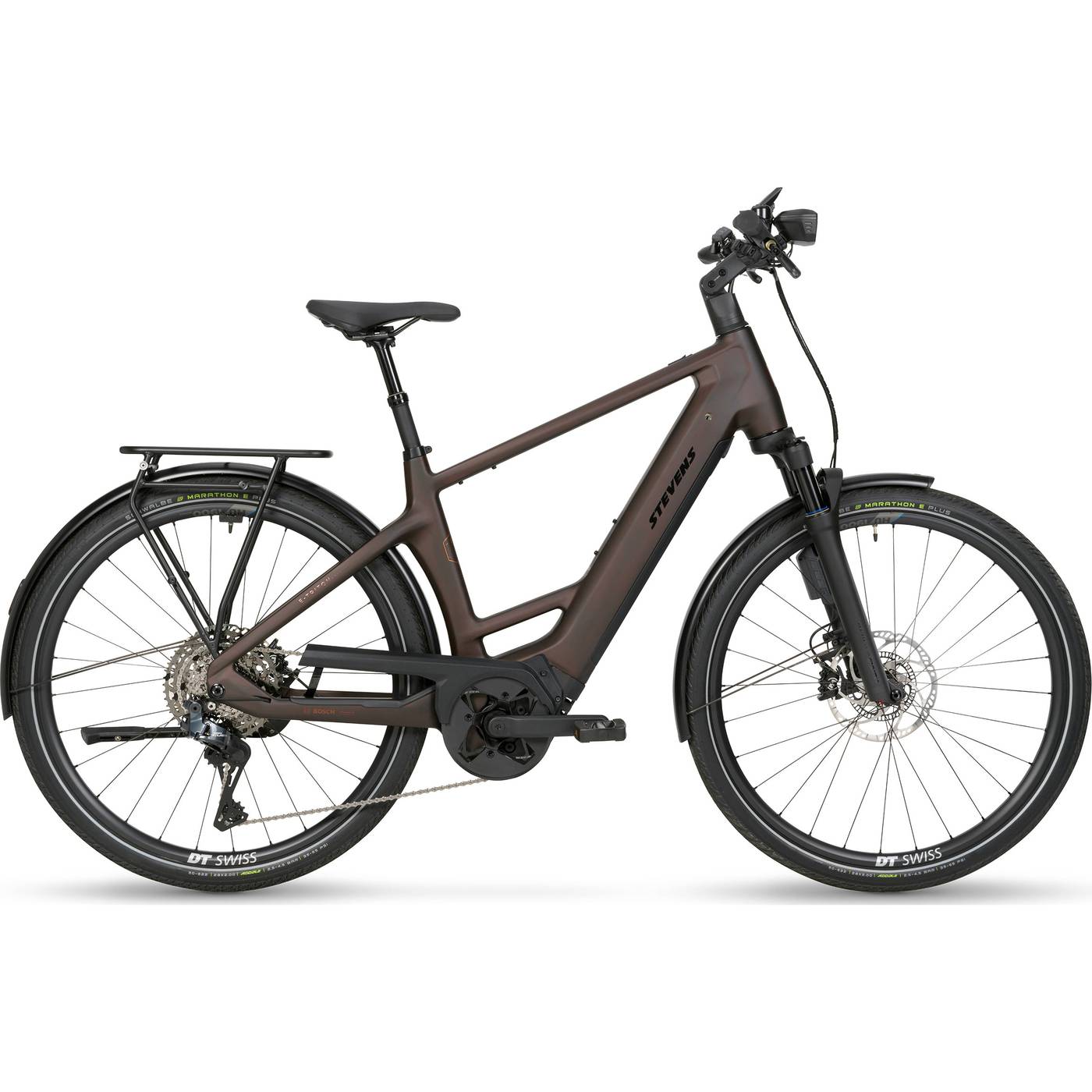

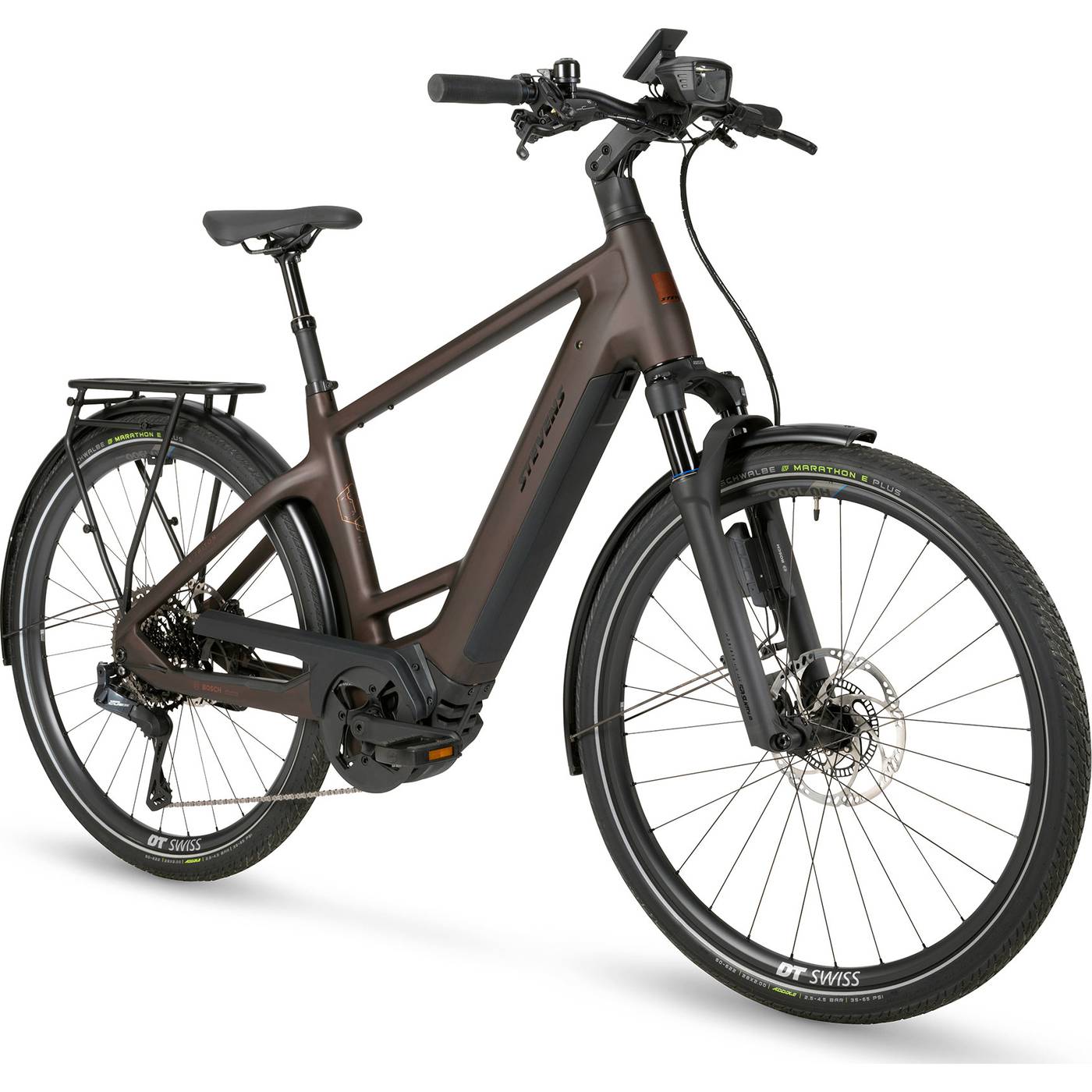

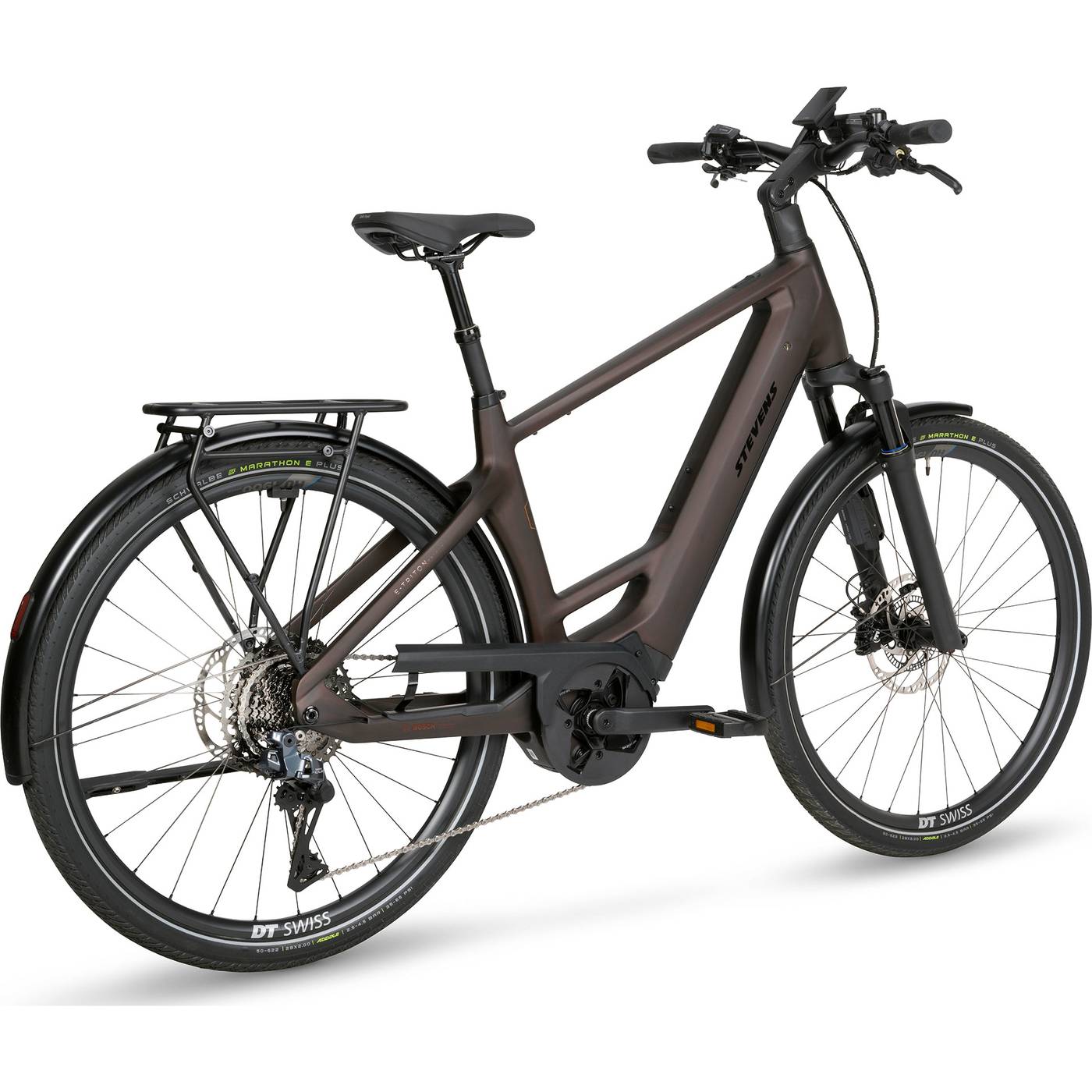

Stevens E-Triton 9.8.1 Plus Electric City Bike

Fast and safe through the city, along commuter routes, cycle paths and riverbanks.

Features

• The E-Triton 9.8.1 Plus is our premium e-touring bike with a carbon frame for everyday use and adventure.
• This veritable high-tech device combines our many years of experience in carbon frame construction with the finest touring technology.
• The Bosch Performance Line CX motor with 800 Wh battery delivers powerful performance and range.
• The Bosch ConnectModule, which comes as standard, promises additional security against theft of the bike.
• The Bosch Premium Service eBike Alarm (available via the Bosch eBike Flow app and the Flow+ function) provides visual and acoustic alarm signals as well as location tracking in the event of theft.
• The electronic Shimano CUES Di2 11-speed gear system guarantees precise, quiet shifting.
• Bosch ABS with Magura brakes ensures maximum control, while Busch & Müller high beam and cornering lights provide added safety.
• The ‘Plus’ e-bike, finished in an elegant reddish-brown Industrial Rust, comes with a 180 kg approval rating and high-quality components – light, powerful and confident.

Specifications

• Frame: Carbon SL Fiber; O.L.D.: 148 mm,Brake: Flatmount disc 7",BB: Bosch,Cable routing: internal
• Fork: SR Suntour Mobie36-Boost EQ 2CR; Travel: 80 mm,Air suspension,Tapered Steerer 1 1/8" - 1.5",O.L.D.: 110 mm,Brake: postmount disc 7"
• Headset: Acros Blocklock Taper 1 1/8"-1 1/2"; Upper bearing cup: ZS56/28.6,Lower bearing cup: ZS66/40
• Brake front: Magura MT C ABS; Hydraulic disc brake,4 pistons,ABS
• Brake rear: Magura MT C ABS; Hydraulic disc brake,4 pistons
• Brake disc: Magura MDR-C; Rotor size: 203 mm,Center-Lock
• Crankset: FSA CK-747/IS; BB type: Bosch / ISIS
• Motor sprocket: STEVENS; 44 T,Chainline: 52 mm,Chainguard
• Derailleur rear: Shimano CUES U8000 Di2 Shadow; RD-U8050-SGS,11-speed,Direct Attached,Total capacity: 41 T
• Chain: Shimano CN-LG500; LINKGLIDE
• Cassette: Shimano CS-LG700-11; 11-speed,Combination: 11-13-15-17-20-23-26-30-36-43-50 T
• Pedals: ATB Alu Pro Reflex
• Engine: Bosch Performance Line CX; BDU384Y,The smart system
• Battery: Bosch PowerTube 800; The smart system,Capacity: 800 Wh/22.2 Ah,Voltage: 36 V,Technology: Li-Ion IoT Module: Bosch Connect Module; BCM3100
• Charger: Bosch 4A charger
• System wheel front: DT Swiss HU 1900 Spline; Axle: QR15x110 mm
• System wheel rear: DT Swiss HU 1900 Spline; Axle: QR12x148 mm
• Tires: Schwalbe Marathon E-Plus Performance; Tire size: 50-622,ADDIX E compound,SmartGuard,Reflective stripes
• Handlebar: Scorpo Rise; Width: 700 mm,Backsweep: 9°,Rise: 25 mm,Clamp: 31.8 mm
• Stem: Oxygen Versa III, adjustable; Handlebar clamp: 31.8 mm,Angle: adjustable (0° - 90°)
• Saddle: Selle Royal Vivo Ergo Royal
• Seatpost: Scorpo DPR-S; Travel: 75 mm | 100 mm,Remote Lockout,Length: 512 mm | 410 mm | 460 mm | 500 mm,Diameter: 30.9 mm,Insertion depth: 100 mm
• Shift lever right: Shimano Di2 Shift Switch; SW-EN605-R
• Brake lever: Magura CMe5; 3 finger
• Display: Bosch Kiox 500; The smart system
• Headlight: B+M Lumotec Briq-XL E; Illuminance: 150 lux,High beam: 220 lux,Cornering light
• Taillight: Supernova TL 3 Z Pro; Break light,Stationary taillight
• Carrier: Racktime STV RC 08; Rear rack mount: RTA,System: SNAP IT 2.0 & Kid'n'Carry
• Mudguards: Curana Apollo 60
• Kickstand: STEVENS Edge; Kickstand mount: KSA 40
• Bell: STEVENS D85 bell
• Weight: 27.4 kg
• Laden weight: 180 kg
• Sizes: HT: S, M, L, XL
