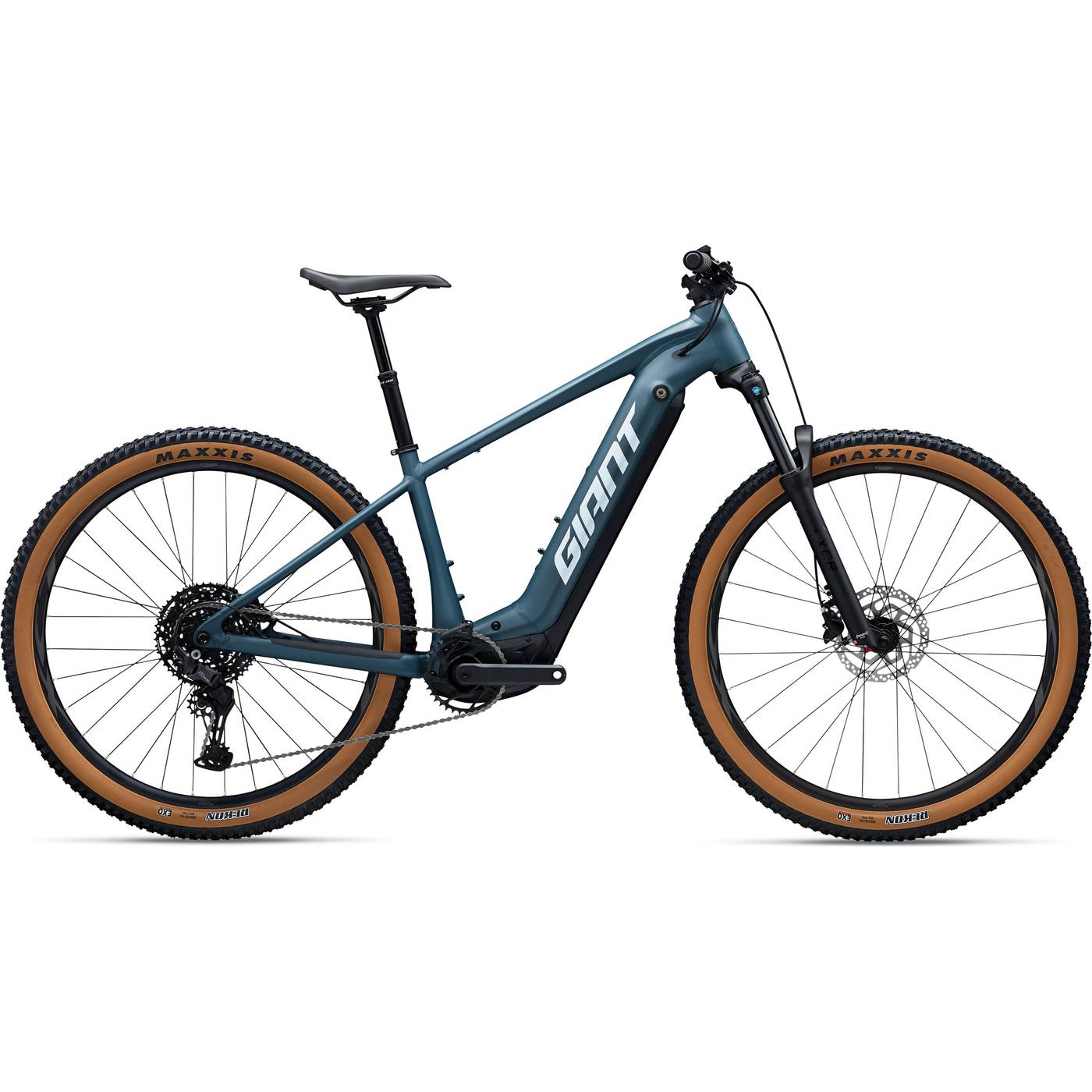

Giant Fathom E+ Electric Mountain Bike

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Features

Smooth power delivery: The new SyncDrive Pro 2 motor delivers smooth, instantaneous power with 85Nm of torque to help riders climb steep hills and extend their trail riding capabilities. Balanced, confident handling: Lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain. Long-lasting battery: Integrated EnergyPak Smart with 750Wh of capacity is easy to charge up to 80 percent in 2.5 hours with our 4A Fast Charger. How far can I expect to ride on a single battery charge?: The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Specifications

• Motor: Giant SyncDrive Pro 2 85Nm PedalPlus 6-Sensor technology
• Controller: Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

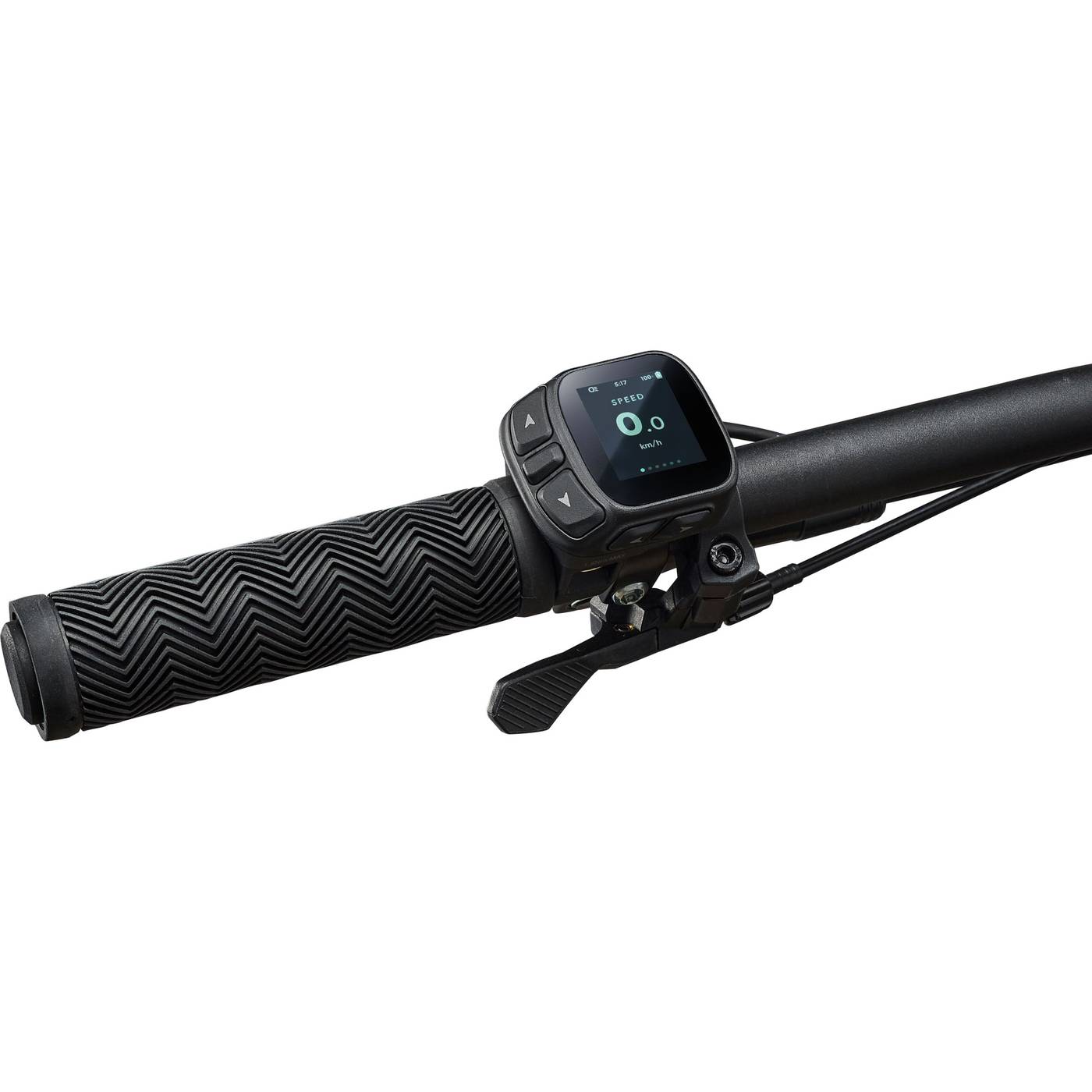

• Display: Giant RideControl Dash 2, high-angle visibility, full color LCD display
• Battery: Giant EnergyPak Smart 750Wh
• Charger: Giant EnergyPak smart charger 4A
• Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
• Sizes: S, M, L, XL
• Colours: Deep Lake
• Frame: ALUXX aluminum, Overdrive 1.125" - 1.8" head tube, 148x12mm Thru-axle, integrated KSA40 kickstand mount
• Fork: SR Suntour XCR34 2CR coil boost 130mm travel 15x110mm AH axle
• Shock: -
• Handlebar: Giant Connect TR Riser 31.8x750mm [S], 780mm [M-XXL]
• Grips: Giant Sole-O
• Stem: Giant Contact
• Seatpost: Giant Contact Switch Core dropper seatpost, 100mm travel
• Saddle: Giant Ergo Contact Trail, ESG
• Pedals: Anti-slip Platform
• Shifters: Shimano Cues
• Rear Derailleur: Shimano Cues 10-speed
• Brakes: Shimano MT200, hydraulic disc,180mm [F/R]
• Brake Levers: Shimano BL-MT200
• Cassette: Shimano Cues11-48T 10-speed
• Chain: Shimano Linkglide CN-LG500
• Crankset: Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms
• Rims: Giant XCT 29 Tubeless Ready 25mm e-bike optimized
• Hubs: eTracker boost alloy 6-bolt disc 15x110mm[F] 12x148mm[R]
• Spokes: Stainless steel
• Tyres: Maxxis Rekon 29x2.4", EXO, 60TPI
• Extras: HMI 2.0 including E locking and Apple Find My
• Lighting: -
• Lock: ABUS Xplus battery lock
• Carrier: -
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

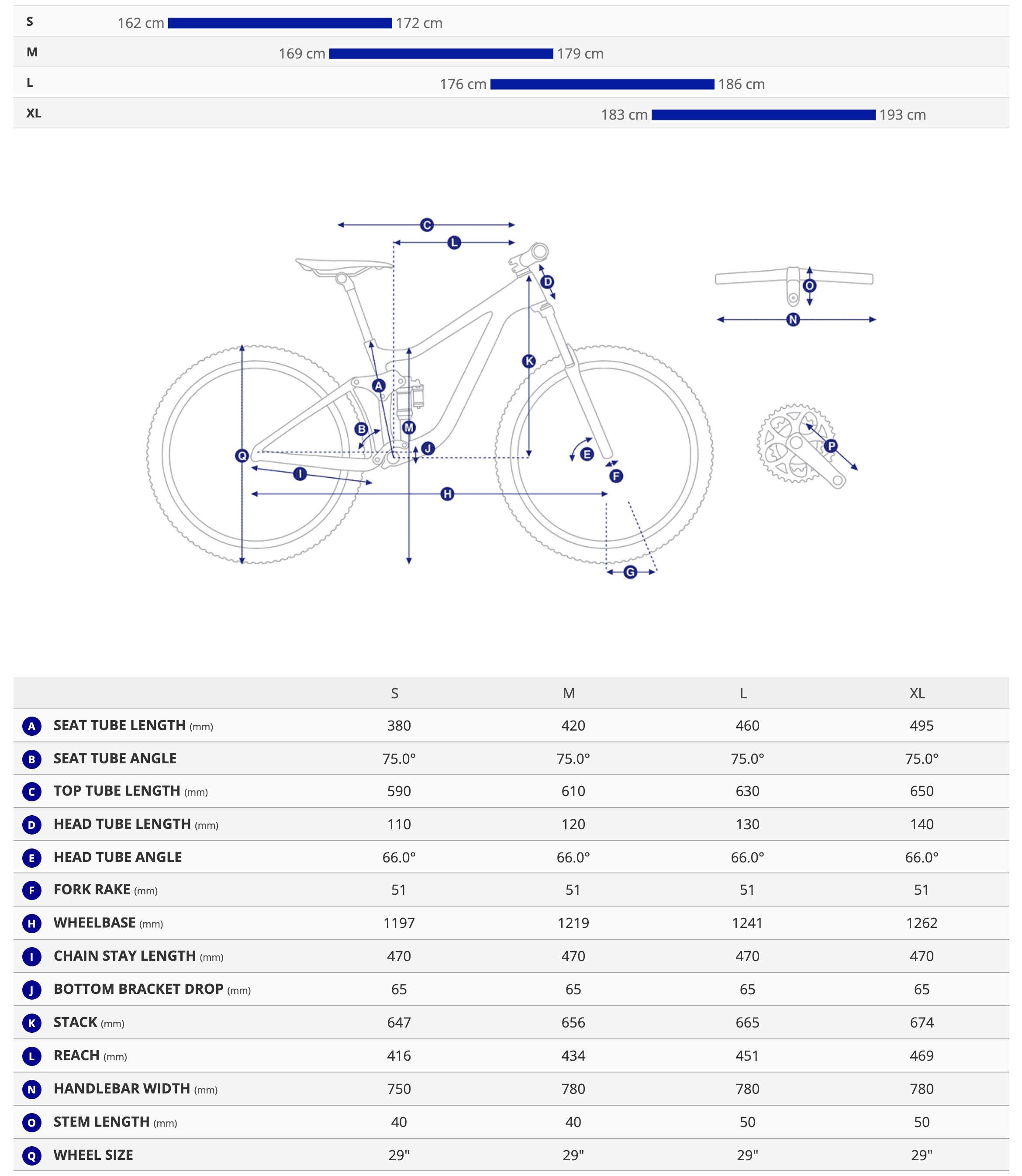

Geometry
