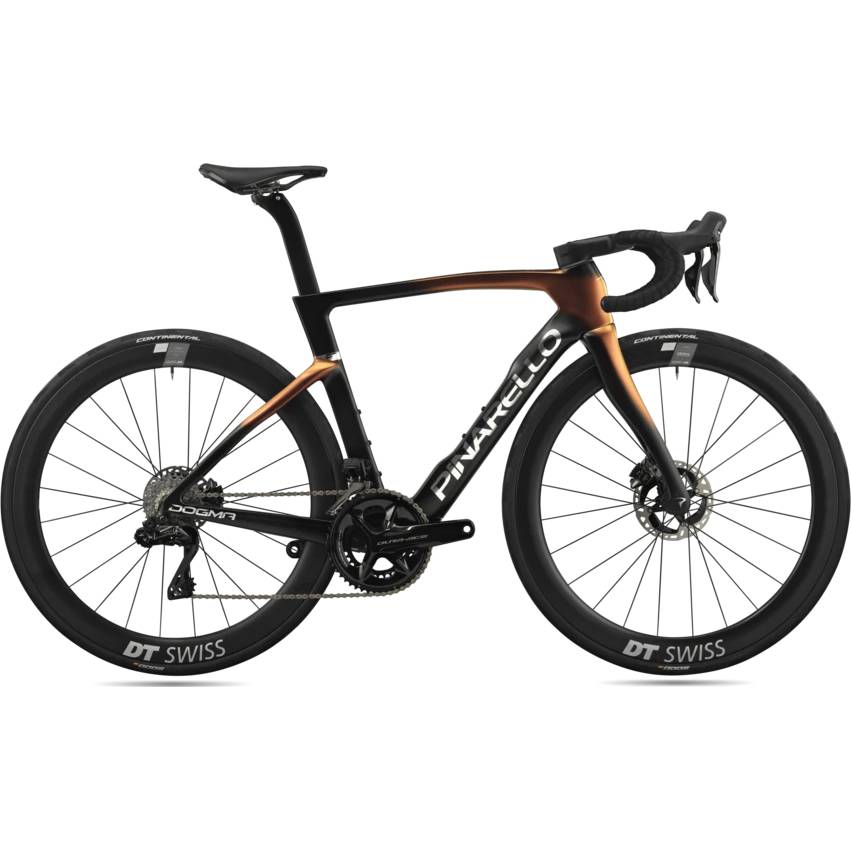

Pinarello Dogma F Disc Dura Ace Di2 57.5cm Road Bike

Features

• We have always stood out from the crowd and created bikes that are absolutely unique, both in terms of looks, but more importantly, performance. Form versus function is a constant source of discussion among our chief designers and we believe the DOGMA F achieves the perfect combination of the two.
• The DOGMA evolves, shedding its skin to surprise you once again. We have tested this new carbon fiber lay-up on our X-Light models and on the bikes of the Ineos Grenadiers team. This new fiber has exceptional tensile strength that has allowed us to reach the next level in terms of performance and lateral stiffness on the latest generation of DOGMA F.
• The down tube has been completely redesigned to reduce its thickness and therefore improve frontal aerodynamic performance and the aerodynamic drag of the frame
• The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves aerodynamic performance by 1.2% in the bottom bracket area.
• Our unique “nose” head tube shape, first introduced on the DOGMA F8 in 2014, evolves again, reducing the volume and width of the area by 8 mm with a slimmer design to improve frontal aerodynamic penetration
• To reduce the width so much we had to design an innovative elliptical head tube and a completely new headset with differentiated bearing diameters, wider at the bottom and narrower at the top.
• New shorter thru axles. The bolt on the right side of the fork has been integrated into the carbon eliminating the external hole. The same has also been done on the frame with the further integration of the rear derailleur hanger. This solution improves both the design and the aerodynamic performance of the frame.
• The new, thinner fork design improves aerodynamics and, thanks to a 47 mm rake tested with professional rider feedback, improves handling and speed on descents.
• The seat post clamp has been reduced in size and fully integrated into the frame. This new solution reduces weight, improves design and increases the cleanliness of the system by limiting the amount of dust and sweat that could reach the seat post.
• The new Talon Ultra Fast with integrated cockpit is lighter and more aerodynamic. Designed with a natural twist in the lever position to allow riders to assume a more aerodynamic position in a safe way.

Specifications

• Frame: TorayCa M40X, TiCR™ Cable Routing, Italian BB
• Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
• Crankset: Shimano Dura Ace FC-R9200 Powermeter, HollowTech 2, 12s
• Front Derailleur: Shimano Dura Ace Di2 FD-9200 11S
• Rear Derailleur: Shimano Dura Ace Di2 RD-R9200 12s
• Sprocket: Shimano Dura Ace CS-R9200 12S
• Chain: Shimano Dura Ace CN-HG 12S
• Bottom Bracket: Shimano Dura Ace SM-BB9200
• Front Disc Brake: Shimano Dura Ace BR-R92000 2-piston caliper, 160mm rotor
• Rear Disc Brake: Shimano Dura Ace BR-R92000 2-piston caliper, 140mm rotor
• Integrated Handlebar Model: MOST Talon Ultra Fast
• Bar Tape: Most Bar Tape
• Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
• Seatpost: Pinarello Aero seatpost with 3D printed titanium seat clamp and titanium hardware
• Tire: Continental Gran Prix 5000S TR28-622
• Wheelset: DT SWISS ARC 1400 50DB DICUT
• Thru Axle: NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
• Bottle: Pinarello Fly 550ml Black
• Bottlecage: Portaborraccia TRAP PACF ø 74mm
• Bicycle available in size 57.5cm (large)

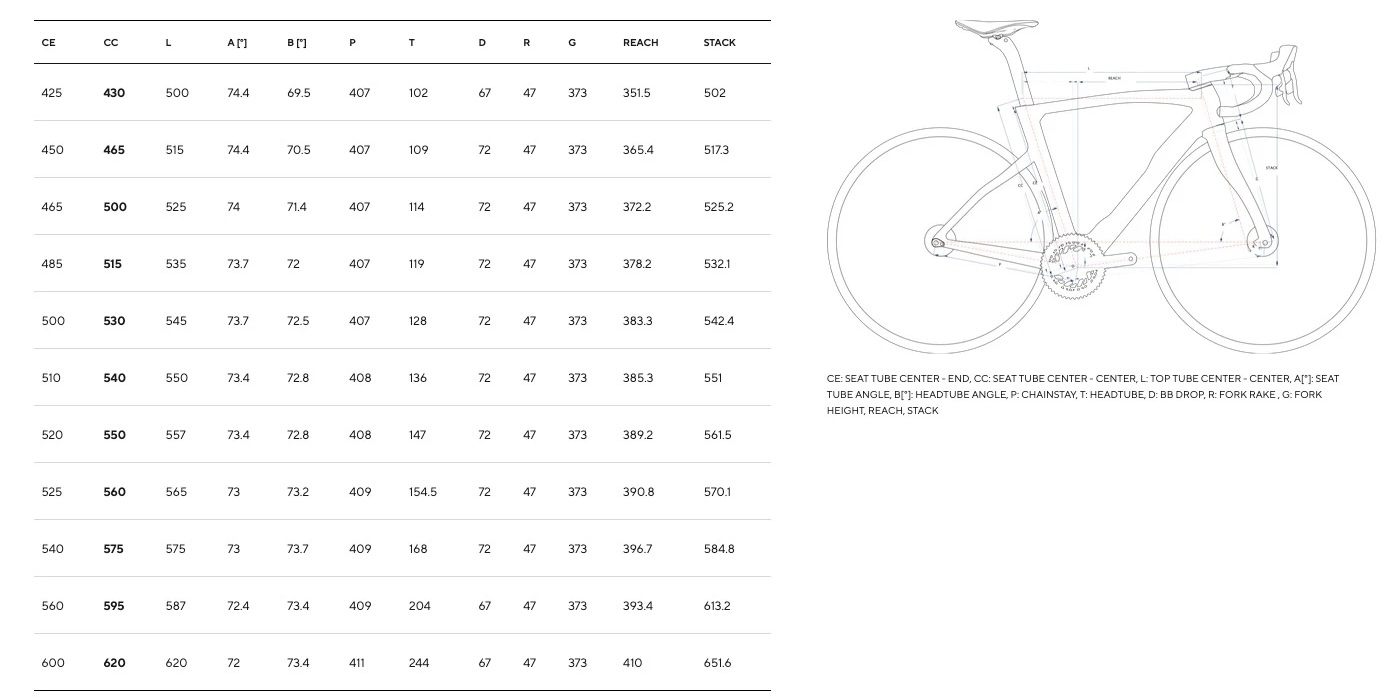

Geometry
